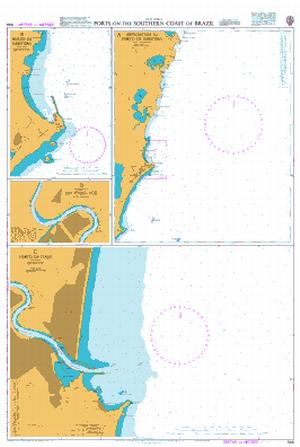

Ports on the Southern Coast of Brazil

Main Chart Details

• Chart Title: Ports on the Southern Coast of Brazil
• Chart Size: 670 x 975 (mm)

Chart Panel Details

• Panel Name A Approaches to Porto de Imbituba
• Natural Scale 75000
• North Limit 28 00'.90S
• East Limit 48 23'.85W
• South Limit 28 21'.45S
• West Limit 48 43'.08W

• Panel Name B Porto de Imbituba
• Natural Scale 20000
• North Limit 28 11'.52S
• East Limit 48 37'.42W
• South Limit 28 15'.33S
• West Limit 48 40'.33W

• Panel Name C Porto de Itajai
• Natural Scale 17500
• North Limit 26 52'.02S
• East Limit 48 33'.22W
• South Limit 26 56'.33S
• West Limit 48 40'.33W

• Panel Name D Continuation of Rio Itajai-Acu
• Natural Scale 17500
• North Limit 26 52'.25S
• East Limit 48 39'.52W
• South Limit 26 53'.66S
• West Limit 48 42'.04W
